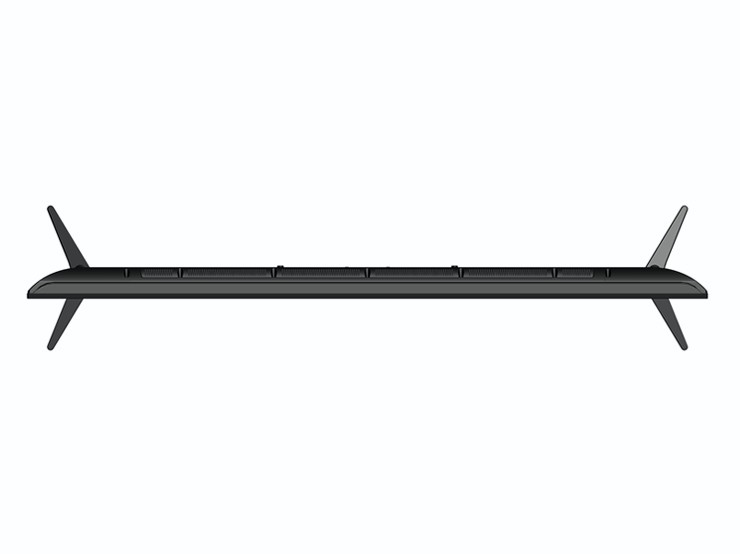

Ultra-narrow Frameless Design Frameless integrative encapsulation and bright brushed metal material of the azerestone-color mlddle-frame that reveals an honorable fashion style of simple luxury. |
|
| 4 K Ultra High Definition Technology (Option) By using 4K and 4 color high color gamut hard screen, TV is presenting the samerealistic perfect quality image from every angle. Even the edge of the pictureappears no color aberration. Hard screen has stable 4K liquid crystal molecular structure with noghost orflicker phenomenon when touched. |

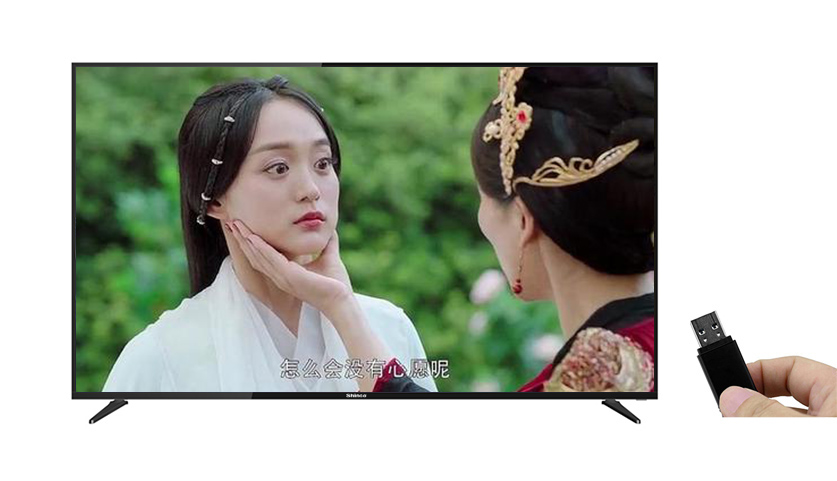

USB 3.0 (Option) The newly upgraded USB 3.0 brungs better high-bandwidth and high-speed transmission. Digital files display will never delay or block. |
|
| Strong Core & Full-speed Response The Strong in-built processing chips with comprehensively upgrades andincreases the speed, providing the most reliable and powerful processing capacity togames, videos and applications. |

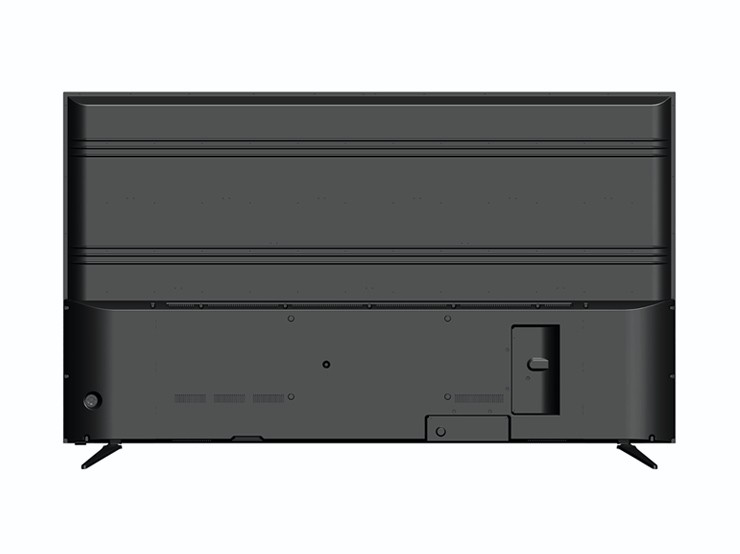

Abundant Terminal Design
Upgrading RM/RMVB to 720P HD format to access all kinds of media devices used by the current family, such as DVD, mobile phone, digital camera, computer,USB flash drive and hard disk. The HDMI 1.4 interface can finish full nondestructive transmission of the HD audio frequency.
| Key features | Asia/Middle East | America | Europe |
| Design | |||
| Size | 38.5" 39.5" 50" 65" 70" 85" | ||
| Type | LED backlight | LED backlight | LED backlight |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| TV System | |||
| DTV Reception | DVB-T/T2/C/S2 ,ATSC, ISDB, DMBT | ATSC/ISDB(Only Digit Country) | DVB-T/T2/C/S2 |
| Video System | PAL,SECAM | NTSC 3.58/4.43 | PAL,SECAM |
| Sound System | BG/DK/I(PAL), | M/N(PAL),M(NTSC) | BG/DK/I(PAL), |
| BG/DK(SECAM) | BG/DK(SECAM) | ||
| Terminais | |||
| RF IN | YES | YES | YES |
| HDMI input | YES | YES | YES |
| Component(YPbPr)input | YES | YES | YES |
| Composite(AV)input | YES | YES | YES |
| PC In (D-sub) | YES | YES | YES |
| PC Audio In (Mini Jack) | YES | YES | YES |
| SCART Input(Europe) | NO | NO | YES |
| CI Slot | NO | NO | YES |
| Composite Video Output | Optional | Optional | Optional |
| Audio Output L-R | Optional | Optional | Optional |
| Headphone Output | YES | YES | YES |
| USB | YES | YES | YES |
| Ehternet(LAN) | Optional | Optional | Optional |
| Power Supply | YES | YES | YES |
| Power Consumption(Stand-by) | <0.5w | <0.5w | <0.5w |
| Teletext/PAGE(EUROPE) | Optional | NO | YES |
| Caption(Subtitle) | Optional | YES | YES |
| Close Caption(LATIN AMERICA) | NO | YES | NO |
| V-Chip(USA) | NO | YES | NO |
| Child Lock(Parental Guidance) | NO | YES | NO |
| Packing information | Net dimension(mm) | Giftbox dimension(mm) | Loading quantity in container |
| 20GP 40HQ | |||
| 38.5" | 890*556*192 | 970*127*595 | 321 767 |
| 39.5" | 909*561*192 | 1020*155*635 | 267 860 |
| 50" | 1125*705*244 | 1220*150*760 | 192 474 |
| 65" | 1459*913*333 | 1555*150*960 | 110 248 |
| 70" | 1564*965*332 | 1700*185*1055 | 78 160 |
| 85" | 1903*1153*304 | 2030*204*1260 | 30 125 |
