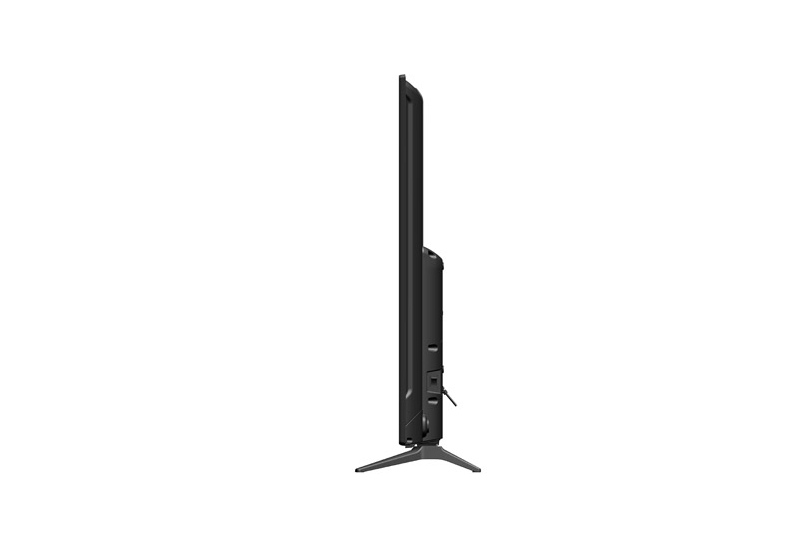

The narrow frameless LED TV design integrative encapsulation and bright brushed metal material of the azerestone-color mlddle-frame that reveals an honorable fashion style of simple luxury. |
|
| 4 K Ultra High Definition Technology（Option） By using a High Definition LED TV with 4K resolution and 4 color high color gamut hard screen, TV is presenting the same realistic perfect quality image from every angle. Even the edge of the picture appears no color aberration. Hard screen has stable 4K liquid crystal molecular structure with no ghost orflicker phenomenon when touched. |
USB 3.0 （Option） The newly upgraded USB 3.0 LED TV brungs better high-bandwidth and high-speed transmission. Digital files display will never delay or block. |
|
| Strong Core & Full-speed Response The Strong in-built processing chips with comprehensively upgrades and increases the speed, providing the most reliable and powerful processing capacity to games, videos and applications. |
Abundant Terminal Design
Upgrading RM/RMVB to 720P HD format to access all kinds of media devices used by the current family, such as DVD, mobile phone, digital camera, computer,USB flash drive and hard disk. The HDMI 2.0 LED TV interface can finish full nondestructive transmission of the HD audio frequency.
| Key features | Asia/Middle East | America | Europe |
| Design | |||
| Size | 23.6" 31.5" 38.5" 39.5" 40" 41.6" 43" 49" 50" 55" 65" | ||
| Type | LED backlight | LED backlight | LED backlight |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| TV System | |||
| DTV Reception | DVB-T/T2/C/S2 ,ATSC, ISDB, DMBT | ATSC/ISDB(Only Digit Country) | DVB-T/T2/C/S2 |
| Video System | PAL,SECAM | NTSC 3.58/4.43 | PAL,SECAM |
| Sound System | BG/DK/I(PAL), | M/N(PAL),M(NTSC) | BG/DK/I(PAL), |
| BG/DK(SECAM) | BG/DK(SECAM) | ||
| Terminais | |||
| RF IN | YES | YES | YES |
| HDMI input | YES | YES | YES |
| Component(YPbPr)input | YES | YES | YES |
| Composite(AV)input | YES | YES | YES |
| PC In (D-sub) | YES | YES | YES |
| PC Audio In (Mini Jack) | YES | YES | YES |
| SCART Input(Europe) | NO | NO | YES |
| CI Slot | NO | NO | YES |
| Composite Video Output | Optional | Optional | Optional |
| Audio Output L-R | Optional | Optional | Optional |
| Headphone Output | YES | YES | YES |
| USB | YES | YES | YES |
| Ehternet(LAN) | Optional | Optional | Optional |
| Power Supply | YES | YES | YES |
| Power Consumption(Stand-by) | <0.5w | <0.5w | <0.5w |
| Teletext/PAGE(EUROPE) | Optional | NO | YES |
| Caption(Subtitle) | Optional | YES | YES |
| Close Caption(LATIN AMERICA) | NO | YES | NO |
| V-Chip(USA) | NO | YES | NO |
| Child Lock(Parental Guidance) | NO | YES | NO |
| Packing information | Net dimension(mm) | Giftbox dimension(mm) | Loading quantity in container |
| 20GP 40HQ | |||
| 23.6" | 552*365*167 | 605*390*115 | 1107 2582 |
| 31.5" | 730*475*192 | 816*526*148 | 465 1115 |
| 38.5" | 890*556*192 | 990*605*150 | 321 767 |
| 39.5" | 909*563*192 | 1030*640*160 | 267 660 |
| 40" | 915*579*192 | 1030*640*160 | 297 660 |
| 41.6" | 952*601*192 | 1055*640*155 | 296 616 |
| 43" | 969*608*192 | 1075*650*155 | 296 616 |
| 49" | 1106*697*243 | 1170*760*150 | 201 516 |
| 50" | 1125*705*245 | 1250*780*150 | 192 462 |
| 55" | 1240*770*243 | 1360*868*172 | 137 327 |
| 65" | 1458*902*332 | 1584*967*177 | 92 202 |
