| Panel spec | Brand | BOE、AUO TFT LCD panel |
| Display mode | A-si TFT-LCD IPS |
| Ratio | 16:9 |
| Size | 23.8INCH |
| Resolution | 1920(RGB)×1080, FHD |
| Backlight type | LED |
| Brightness (TYP) | 300 cd/m2 (Typ.) |
| Color temperature(K) | 6500K |
| Contrast ratio | 3000:1 (Typ.) (透射) |
| Display color | 16.7M |
| sRGB | 95% |
| NTSC | 75% |
| Pixel pitch（mm） | 0.24825×0.24825 mm (H×V) |
| Viewing angle（H/V） | 89/89/89/89 |
| Response time | 5ms |
| MPRT support | N/A |
| Refresh rate | 60Hz |
| Touch panel | Touchscreen | 10-point touch |
| Surface coating | Glass 0.75mm |
| Super narrow bezel |
| Anti-glare coating |
| 板卡參數(shù)值 | MTK solution: | MTK8183「4+64G」 | Qualcomm solution: | GT686「8+128G」 |
| Chipset | MT8183,8核 （4核 A73 2.0GHz +4核 A53 2.0GHz | Chipset | QCMQCM686 ，4*A73 @2.0GHz + 4*A53 @1.8GHz |
| GPU | ARM Mali -G72 MP3 800MHz,OpenGL ES 3.0 3D graphic accelerator | GPU | Adreno 610 |
|
|
| Storage | 4~8GB LPDDR4x | Storage | RAM：8GB LPDDR4X @1804 MHz |
| 64~256GB uFS2.1 「external storage：Max 2TB」 | Flash：128GB UFS 2.1 gear 3 |
| O/S | Android 13.0 | O/S | Android 10.0 |
|
|
| WiFi | wi-fi 802 11AC/b/g/n 協(xié)議，2.4GHz/5GHz 頻段 支持藍牙5.0協(xié)議 | WiFi | 2.4GHz+5GHz 802.11 a/b/g/n/ac |
| GAMER input | 5.0/8.0/13Mega pixels 支持MIPI 或USB接口 | Bluetooth | Bluetooth 5.0 DR/EDR/BLE |
| Sensor | Gravity sensors, light sensors, distance sensors | Satellite positioning | GPS/Beidou/GLONASS |
| Buttons | On/Off , Vol+/- | Video coder | 4K@30fps (H.264, HEVC, VP9) |
| Power supply | DC12V 2A (4pin DC_Jack co-lay | Video decoder | 4K@30fps (H.264, HEVC, VP8) |
| I/O | 1X USB 2.0 Type_A | I/O | 1 X HDMI-IN |
| 1X USB 2.0 Type_C, supporting OTG | 1 X DP input，支持 DP1.4, 最大支持 FHD/WUXGA@60Hz |
| 1X Audio Jack 3.5mm | NA |
| 1X HMDI-IN座子 | 1X USB2.0 |
| NA | 1X USB3.0 supporting OTG |
| NA | 1 x SD3.0, 4bit SDIO, |
| NA | 1 x SIM card |
| Remote control | Type | Infrared |
| Voice control | NA |
| Distance | ＜15m |
| Indicate LED | blue |
| Power unit | Lithium cell | Material | Polymer |
| Spec | 12V 4A |
| Capacity | 10000Ma |
| Charing time | 5~6H |
| Working hours | 4~5H |
| Power supply | Power consumption | ≤60W |
| Standby power consumption | ≤1W, |
| Power supply | Input： AC100-240V.50-60HZ ， Output： DC12V 4A |
| LED light | Blue |
| Speakers | Amplifer | Digital |
| Input | 3.5mm*1 |
| Power consumption | 8Ω 5W*2 |
| Packing | Dimension | Unit dimension | NA |
| Packing dimention | 1190mm(L) *465.0mm（W） *235.0mm(H) |
| Weight | N.W | 11.7KG |
| G.W | 14.50KG 「顯示器：3.35KG +底座：8.35KG+ 包材：2.0KG =13.70KG」
|
| Wall mount | Support |
| Base | Rotation | YES |
| Rotation angle front/back（°） | 25°~ 45° |
| Lift（±cm) | 18CM |

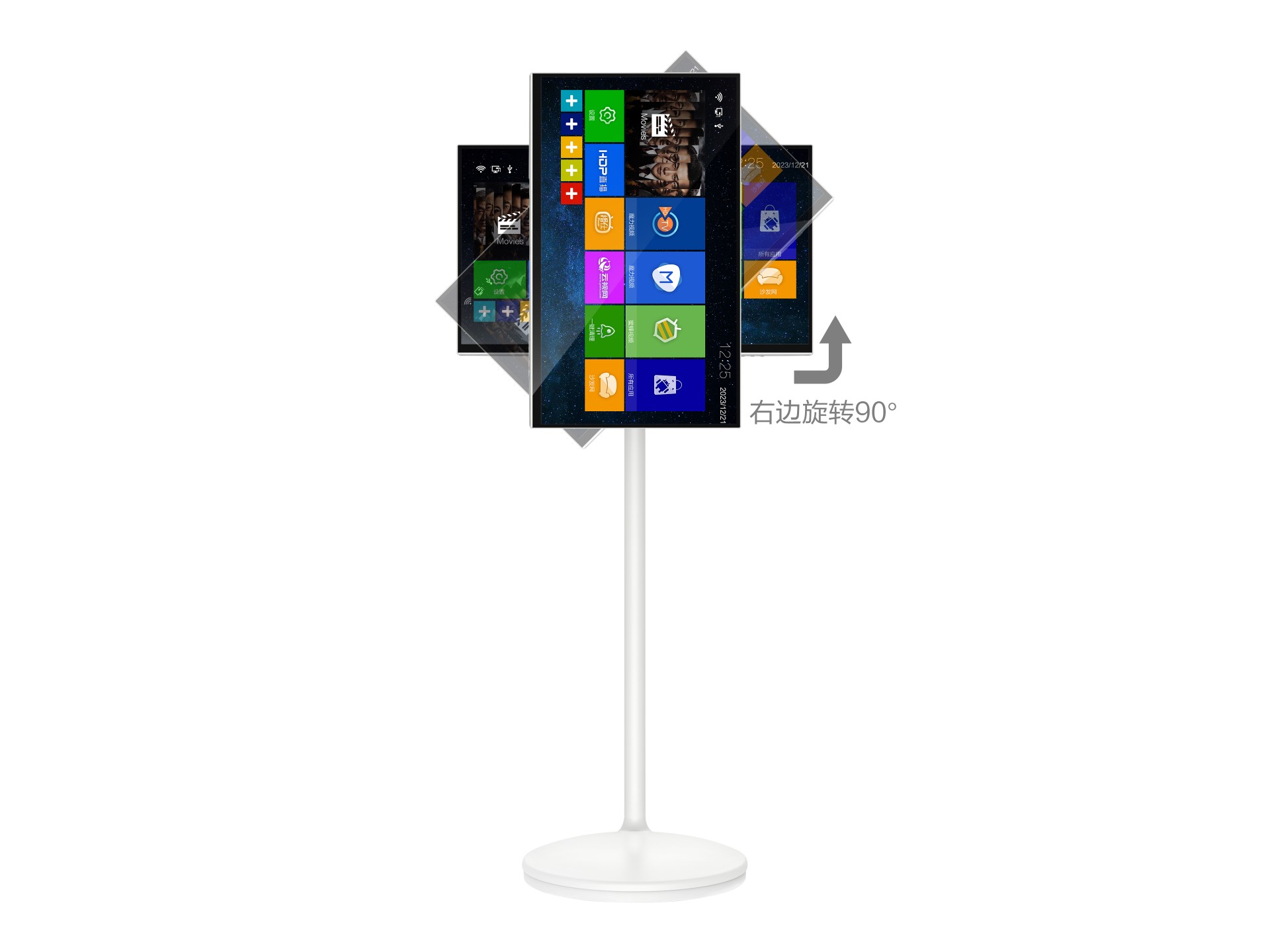

| Roation angle left/right（°） | 90° |
| OSD menu | Multi languages |
| Storage temperature | -0°C~+60°C |
| Working temperature | -20°C~+60°C |
